Tridev 12 VOLT 10 AMP 120 WATT Switching Power Supply Universal Regulated Transformer (AC 110V-220V to DC 12V 10A)
Original price was: ₹1,500.00.₹549.00Current price is: ₹549.00.
Description:-
- High quality Switch Power Supply, Widely used in Industrial automation, LED display, etc. With anti-jamming to ensures the long life LED lamps and reduce the LED luminous decay
- Universal AC input / Full range. The input voltage: AC 100V/240V, the output current: 10Amps
- Smart device surge protection for Shortage, Overload, Over Voltage
- Dual input voltage: AC 110V/220V. There is a switch, choose the proper voltage before use
- 100% full load burn-in test.Cooling by free air convection.
- Description
- Reviews (0)
Description
12VOLT 10AMPS 120WATTS SWITCHING POWER SUPPLY
 Â
  Parameter
- Input: AC 100V~120V / 200V~260V 50/60Hz
- Output Voltage : DC 12V ( ±10% adjustable)
- Output Current: 10A max
- Output Wattage: 120W max
- Fix Screw Hole Diameter: 2.5mm (0.1inch)
- Working temperature: -10℃ ~50℃ （-50 ℉ ~ 122℉）
- Storage temperature: -20℃ ~ 60℃ （-68 ℉ ~ 140℉）
- Environmental humidity: 10-95%
Kindly Note
- We suggest the max use of power should be no more than 80% of the full loads, other wise, the power supply’s span life will be shortened. We recommend you to use this 12V 10A 120W power supply to power devices less than 96W.
- 110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for EUR.
Package Included
- 1 x 12V 10A Power Supply
|
|
|
|
|
|---|---|---|---|
Superior SafetyBuilt-in safeguards to protect against over voltage, over current, overheat, short-circuit, which will provide ultimate protection for you and your devices. |
Stable OutputBuilt-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference. |
Two Output ChannelsWith two independent output channels, it can power more devices. The maximum output of each channel can reach 10A 120W. Total output power of the two channels is 10A 120W. |

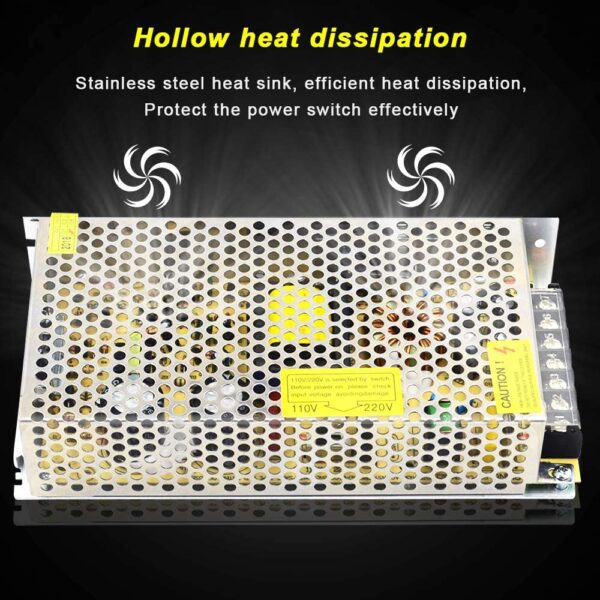

Premium QualityThe shell is made of aluminum. Cellular structure design can enhance air convection and speed up heat dissipation. Premium quality materials make it more solid and durable. |
HOW TO USED POWER SUPPLY
- Input wire has to be connected L & N point, if there is an earthing wire then you can also use that.
- Check whether the led light on the right side is on.
- Put (COM)v- negative wire at the output point (wire color can be black), then you put positive wire on v+, (the color of the wire can be red)
- With the help of adjustable switch in this power supply, you can up and down the voltage up to 10% (keep in mind that it can become free by using more)
Connection:-
- L: FireWire
- N: zero line
- G: ground wire
- – V: load negative
- + V: load positive
Product Features:-
- Full load burn-in test
- High efficiency
- Low temperature
- LED indicator for power on
- Over Load and Short Circuit Protection
- Over Voltage Protection
- LED Switching Power Supply, high quality material, durable and safety in use
- Great switching power supply for home appliances
- Universal AC input/full range, cooling by automatic on/off cooling fan
- A new style Switching Power Supply which can keep the voltage stability
